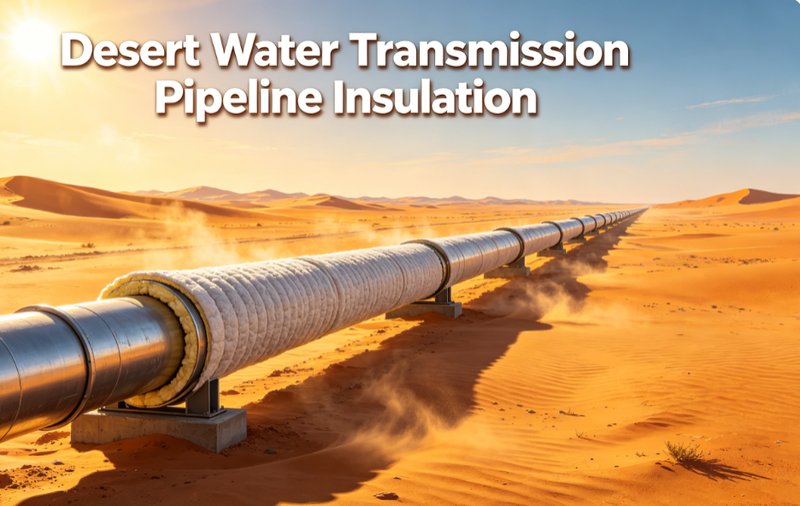

Blocking 55°C Desert Sun: Glass Wool Shells for Mega Water Transmission

The Lifeline of Desert Communities vs. Lethal 55°C Solar Radiation

Freshwater produced by large-scale desalination plants is the fundamental lifeline for cities and settlements across the Arabian Gulf. These precious water resources are delivered via hundreds of kilometers of overhead trunk pipelines that stretch from highly corrosive C5-M coastal environments deep into arid inland deserts.

Operating in fully exposed conditions year-round, the pipelines endure ambient temperatures up to 55°C in hot seasons, together with combined thermal loads from direct sunlight and ground reflected radiation. Unlike regular high temperature, intensive solar radiant heat continuously penetrates common insulation and accumulates inside the pipes. Low flow velocity and water stagnation at bends, tees and dead ends further worsen heat buildup. This harsh composite environment has become an unavoidable hidden danger for the entire regional water supply system, challenging the stability and safety of municipal water delivery every single day.

Rising Water Temperature: Bacterial Outbreaks, Water Contamination and Coating Failure

Traditional soft wrapped insulation fails to suppress solar heat penetration, triggering a series of operational stability challenges for municipal water supply systems across the Middle East. When solar heat elevates internal water temperature to 25°C–45°C, the active temperature range accelerates microbial reproduction, affecting water quality stability and requiring regular pipeline sampling, flushing and maintenance. These routine adjustments bring extra operational workload and resource consumption for local water utilities.

Beyond water quality stability, long-term high temperature and drastic diurnal thermal cycling cause thermal fatigue to food-grade anti-corrosion linings on pipe inner walls. Gradual embrittlement, cracking and peeling of protective coatings lead to two major operational issues: coating debris affects water purity, while exposed metal surfaces accelerate internal corrosion and mineral scaling. This cyclic aging process undermines pipeline operating efficiency and shortens the designed service life of water transmission infrastructure.

These common operational issues stem from the inherent limitations of conventional soft insulation. Without dedicated radiant heat reflection layers, it cannot adapt to intense desert solar radiation. Manual multi-layer wrapping leaves countless gaps and thermal bridges, allowing hot wind and sand to affect pipeline thermal stability. Its high water absorption weakens insulation performance after absorbing coastal salt fog or night condensation. In addition, organic binders degrade rapidly under long-term UV radiation and high temperature, causing fiber sagging and pulverization. Conventional soft insulation requires full replacement every 2 to 3 years, bringing continuous repeated maintenance work and additional project costs.

For EPC contractors and project management teams, frequent maintenance and unstable pipeline operation will increase overall project operation costs and affect long-term operational efficiency of water supply projects.

Woqin’s Definitive Solution: High-Reflection Foil + Low-Conductivity Glass Wool Shells

To tackle solar heat penetration and temperature runaway fundamentally, Woqin develops tailor-made foil-faced preformed glass wool shells for desert water transmission pipelines. Our integrated solution locks water temperature within safe thresholds with three core technical advantages, fully verified by third-party lab tests.

First, the outer high-performance aluminium foil layer acts as the first line of defense. Tested per ASTM E903, the foil achieves a solar reflectance (TSR) of ≥0.92, rejecting more than 92% of incident radiant heat. It cuts off external radiant heat sources, stabilizes internal pipeline temperature, and perfectly compensates for the weak solar resistance of traditional soft insulation.

Second, the high-quality glass wool core delivers outstanding thermal insulation performance with a thermal conductivity of ≤0.034 W/(m·K) at 25°C. With a moisture content controlled at ≤1.0%, the material maintains stable insulation performance even in humid coastal areas and foggy conditions, never failing due to water absorption. Its heat shrinkage onset temperature reaches ≥250°C, far higher than the maximum desert ambient temperature, so no deformation, shrinkage or pulverization occurs under long-term solar exposure. This perfectly addresses the three major shortcomings of conventional soft insulation: insufficient thermal resistance, moisture-induced performance loss, and rapid degradation under high-temperature UV exposure.

Third, factory prefabricated shells adopt tongue-and-groove interlocking structure. They fit the pipe surface 360° tightly with no gaps or thermal bridges, blocking sand and hot wind invasion thoroughly. This integrated sealing design ensures uniform temperature along the entire pipeline and eliminates local hotspots, optimizing the unstable thermal performance caused by manual wrapping gaps of traditional insulation materials.

Combined together, our solution maintains stable water temperature all year round, optimizes water quality stability and pipeline coating protection, and extends the service life of the entire insulation system to more than 20 years. It reduces frequent maintenance work and effectively lowers long-term operational costs for large-scale water transmission projects.

Unmatched Advantages for Large-Scale Desert Construction & Logistics

Apart from superior thermal performance, Woqin glass wool shells are optimized for the extreme logistics and construction conditions of remote desert pipeline projects, solving the biggest pain points of EPC contractors.

Our glass wool products are available in densities from 48 to 80 kg/m³ per project requirement, much lighter than traditional rock wool and calcium silicate insulation. For hundreds of kilometers of long-distance transportation on unimproved desert roads, the lightweight design greatly increases the loading capacity of off-road trucks, reduces delivery trips, fuel consumption and vehicle wear, and significantly optimizes the overall logistics cost of desert pipeline projects.

In compliance with Middle East heat stress regulations, outdoor heavy labor is banned from 11:00 to 15:00 in hot seasons, leaving only 4 to 6 hours of effective working time per day. Different from soft insulation that requires complicated on-site measuring, cutting and multi-layer wrapping, our preformed pipe shells support simple snap-on installation with zero field modification. Construction efficiency is improved dramatically within the limited working window, effectively ensuring stable project progress and efficient project delivery for EPC contractors.

In addition, standardized prefabrication generates nearly no construction waste, improving material utilization. The lightweight structure also reduces labor intensity, lowering worker turnover rates and stabilizing on-site labor costs for large-scale pipeline projects, resolving the common headaches of on-site material waste and high workforce turnover.

Optimize Your Pipeline Thermal Protection Solution

Reasonable solar thermal protection is essential to maintain long-term stable operation and excellent water quality of desert water transmission pipelines. Empower your water supply infrastructure with professional thermal insulation solutions to achieve low-cost and high-efficiency long-term operation.

High-Priority Project Consultation

Request your Custom Thermal Blockage Calculation Report within 24 hours. Share your pipeline parameters to get a fully customized thermal insulation solution for your desert water transmission project.

Brand Introduction

Hebei Woqin is an engineering-led thermal insulation provider focusing on Middle East desert water transmission projects.. All our pipe insulation products comply with ASTM C547 and BS 5422 international standards. With over 15 years of experience serving the Middle East market, we have delivered reliable insulation solutions for numerous large-scale water projects across Saudi Arabia, the UAE and Qatar. Our solutions have been specified for trunk mains, transmission pipelines, and district cooling networks across the region. We provide full-cycle customized design, third-party test documentation and on-site engineering support for EPC contractors and water utilities.
