Engineering the -40°C Lifeline: Fire-Resistant Pre-formed Shells for Arctic Firewater Networks

1. Introduction: The Static Water Bomb in -40°C
In the punishing blizzards of Siberia and the CIS Arctic, petrochemical refineries and mining camps battle relentless ambient temperatures plunging below -40°C. While standard process pipelines transport high-temperature flowing fluids, the plant’s ultimate safety mechanism—the Firewater Supply Network—operates under a far more dangerous condition: it is static "dead water."

Physics is unforgiving. When static water freezes, it rapidly expands by approximately 9% in volume. This generates immense hydrostatic pressure that effortlessly tears through high-tensile carbon steel, shatters cast-iron flanges, and ruptures expensive fire valves. If the insulation on a firewater line fails, the network transforms into a frozen "expansion bomb." When an actual fire breaks out, emergency pumps will draw a vacuum, leaving multi-billion-dollar assets to burn while fire crews stand by without a single drop of water.

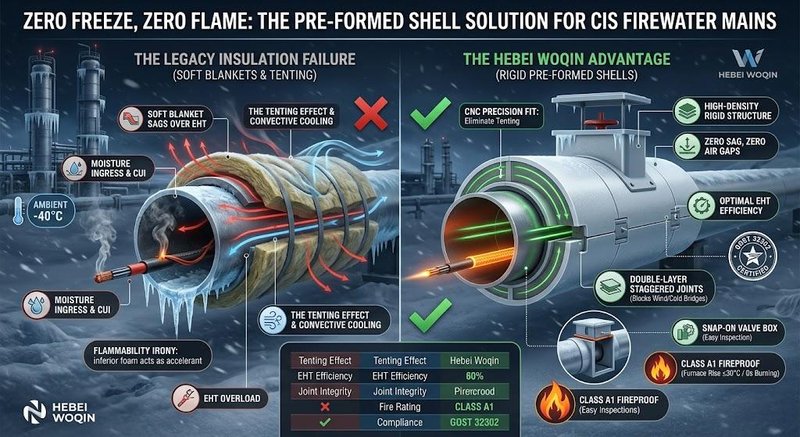

2. The 3 Fatal Failures of Legacy Insulation on Fire Lines
To prevent static water from freezing, EPC contractors traditionally rely on a combination of Electrical Heat Tracing (EHT) cables and soft, hand-wrapped mineral wool blankets. However, in extreme sub-zero environments, this primitive method guarantees systemic failure through three fatal flaws:

• EHT Overload & The Tenting Effect: Soft insulation blankets cannot sit perfectly flush against the pipe and the protruding EHT cables. They sag, creating a large, continuous air gap known as the "Tenting Effect." This trapped air acts as a convective cooling tunnel. The heat generated by the EHT cable is instantly swept away by the cold air rather than transferring into the firewater pipe. To compensate, the EHT system must run at 100% capacity, risking severe electrical overload, cable burnout, and massive OPEX waste.

• Thermal Bridging & Destructive Maintenance: Firewater networks are riddled with complex valves, hydrants, and T-joints—each acting as a massive metallic heat sink. In a -40°C blizzard, moisture penetrates the soft insulation at these joints, causing localized flash-freezing. When maintenance crews attempt to inspect frozen valves, the brittle, ice-caked hand-wrapped blankets must be violently cut and ripped apart. This "destructive maintenance" leaves exposed gaps that can never be properly resealed, accelerating Corrosion Under Insulation (CUI) and guaranteeing future ice plugs.

• The Flammability Irony: The most tragic failure occurs when EPCs attempt to boost thermal resistance by wrapping firewater lines in non-compliant combustible foams (like standard PUR or elastomeric rubber). This creates a lethal irony: the very insulation designed to protect the firefighting water becomes an accelerant during a plant fire. As flames spread to the pipe rack, the insulation ignites, releasing toxic smoke and destroying the water supply lines before the fire can be suppressed.

3. The Ultimate Defense: GOST-Certified Pre-formed Rock Wool Shells
To survive the Arctic and eradicate the "Tenting Effect," EPCs must transition from soft, hand-wrapped blankets to rigid, engineered structures. Hebei Woqin introduces our High-Density Rock Wool Pre-formed Shell System, specifically designed to secure CIS firewater networks:

• Pre-formed Structural Integrity (Zero Tenting): Manufactured using precision CNC cutting, our rigid shells are engineered to perfectly match the pipe's outer diameter. This guarantees 100% thermal coupling with the EHT cable, permanently eliminating convective air gaps. The EHT system can operate at optimal efficiency, slashing electrical OPEX and entirely preventing cable burnout.
• Double-Layer Staggered Joints: For extreme -40°C environments, we deploy a double-layer installation protocol. By staggering both the longitudinal and circumferential joints between the inner and outer layers, we create an impenetrable thermal labyrinth. This totally blocks penetrating blizzards and eliminates thermal bridging, keeping the static water safely above freezing.
• Snap-On Valve Boxes: To end the cycle of "destructive maintenance," Woqin provides custom-engineered, removable insulation boxes for complex valves and fire hydrants. Maintenance crews simply unlatch the box for winter inspections and snap it back into place, ensuring the thermal barrier remains 100% intact year after year.

4. Hard Data & CIS Market Compliance
In the high-stakes petrochemical sector, technical superiority must be backed by absolute safety and legal compliance.

• Class A1 Non-Combustible (Zero Flame, Zero Smoke): Unlike lethal synthetic foams, our rock wool is forged from spun volcanic rock. Under rigorous destructive testing, it recorded a Furnace Temperature Rise of ≤30°C and a Sustained Burning Time of 0 seconds. It acts as an absolute firebreak, protecting the critical water supply lines from external flames while emitting zero toxic smoke.
• GOST 32302 Certified: We understand the bureaucratic realities of the CIS market. Our pre-formed shells carry full GOST 32302 certification. This ensures seamless customs clearance and frictionless technical approvals for EPC contractors operating in the Russian Federation and Central Asia.

5. Conclusion & High-Value CTA: Secure Your Ultimate Line of Defense
In an industrial facility, the cost of firewater insulation is a fraction of a percent of the total CAPEX, yet it dictates the survival of 100% of the asset during a disaster. You cannot entrust your ultimate line of defense to soft blankets that sag, freeze, and burn.

Upgrade to Hebei Woqin’s A1 Pre-formed Rock Wool Shells and guarantee your firewater flows when you need it most.

Stop heating the Arctic wind and risking your safety protocols.

• Request the EHT Thermal Coupling Guide: Email [an@cn-aerogel.com] to receive our engineering manual on perfectly mating pre-formed shells with electrical heat tracing systems.
• Download the GOST & A1 Fire Report Library: Access our full suite of Russian/English compliance documents and Technical Data Sheets (TDS) for your next project bid.
• Claim Your "Arctic Sample Box": Are you managing a CIS winterization project? Qualified EPC firms can request a physical sample of our high-density rock wool shell to experience its structural superiority firsthand.
