The Load-Bearing Insulation Revolution: Why High-Density PUR Thermal Breaks are the Secret to Passivhaus Excellence

I. The Silent Energy Thief: The Crisis of Thermal Bridging

For over 15 years, I have navigated the intersection of material science and global trade, and one problem remains constant: the "Thermal Bridge." Whether it’s a cantilevered balcony slab, a curtain wall connection, or a heavy pipe support, these structural penetrations act as thermal highways, allowing heat to bypass even the thickest wall insulation.

In the past, architects faced a frustrating trade-off: use traditional soft insulation (which lacks structural integrity) or use conductive materials like wood or plastic (which lead to condensation and energy loss). At Hebei Woqin, we’ve engineered the middle ground. Our High-Density Rigid Polyurethane (PUR) Thermal Breaks are designed to be "Structural Insulators"—materials that hold the load while stopping the cold.

II. Breaking the Physics: Core Performance Advantages

What separates an "ordinary foam" from an "engineered thermal break"? At our Hebei facility, we use high-pressure foaming technology to achieve a density and cell structure that independent testing confirms to be world-class.

1. Compressive Strength Meets Thermal Resistance
Our PUR blocks offer a wide spectrum of mechanical performance. For standard architectural applications like balcony slabs, we provide a compressive strength of 300 kPa. However, understanding that industrial environments demand more, we offer specialized high-density formulations and customized reinforcements that reach up to 14.5 MPa (approx. 2100 psi) for heavy-duty structural supports. This allows engineers to specify the exact "strength-to-insulation" ratio required for their specific load profile.

2. The Closed-Cell Shield
Moisture is the death of insulation. Our HDPU features a <2% water absorption rate due to its tight closed-cell structure. In humid coastal environments or refrigerated cold rooms, our blocks remain bone-dry, ensuring their R-value never degrades over the building's 50-year lifespan.

3. Fire Safety: Dual Standard Compliance
Global compliance is in our DNA. We don't just claim fire resistance; we prove it through rigorous testing:

• Standard Grade: B1 Fire Retardant (per GB 8624-2012), suitable for most commercial interior and exterior applications.
• High-Risk Grade: Optional A2 Non-Combustible versions (per EN 13501-1), meeting the stringent safety mandates for high-rise facades and public infrastructure.

III. Proven Application Scenarios: From Sydney to Paris

Real-world data is the only currency I trust. Our PUR blocks have been a "hidden hero" in multiple international projects.

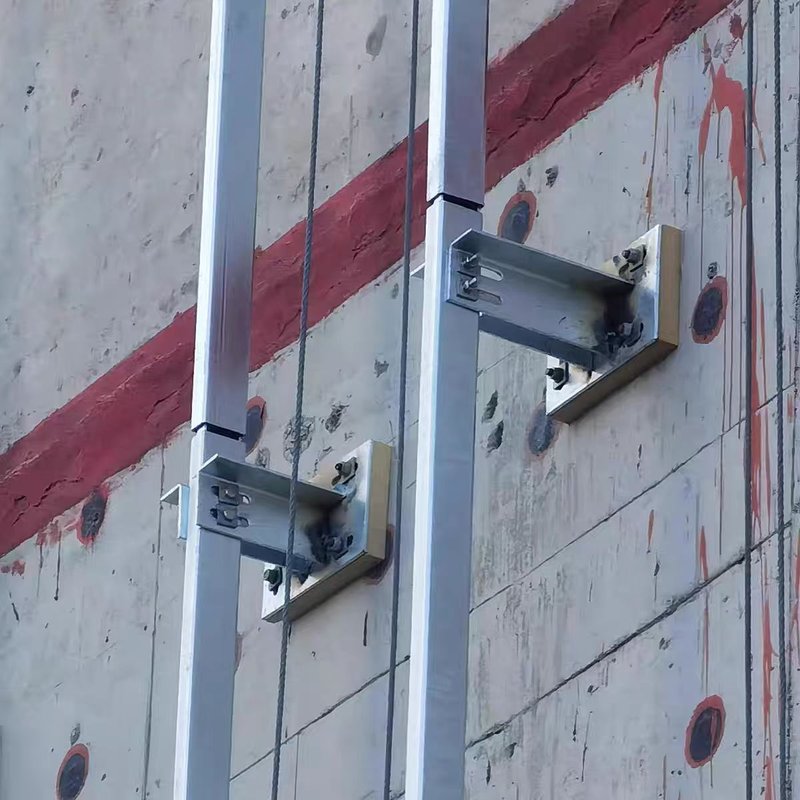

1. Curtain Wall Integrity
In modern skyscrapers, the connection between aluminum mullions and concrete slabs is a major source of heat loss. Based on thermal modeling and field measurements following ISO 10211 standards, placing our 50–100 mm PUR blocks at these junctions reduced the linear thermal transmittance (Ψ-value) from 0.15 W/(m·K) to below 0.05 W/(m·K). This massive 66% reduction in "thermal leakage" effectively keeps surface temperatures above the dew point, completely eliminating the risk of condensation and mold growth.

2. Achieving Passivhaus Standards
In the Australian market, the NCC 2022 updates have pushed builders toward higher performance. Our high-density thermal breaks, installed at slab penetrations, have allowed multiple residential projects to achieve Passivhaus Certification without the need for excessively thick wall systems.

3. Industrial Cold-Chain Optimization
For cold-chain operators, energy is the single largest overhead. By replacing standard metal-to-metal penetration details with our PUR thermal breaks, operators have reported a 15–20% reduction in refrigeration energy consumption.

IV. The Economics of Quality: 2025 Factory-Direct Pricing

I believe in transparency. As a direct manufacturer, we eliminate the middleman, allowing us to offer "Performance Density" at competitive rates.

• Standard 50 mm Blocks: USD 18–22 per m² (FOB Tianjin)
• 80–100 mm Heavy-Duty Blocks: USD 24–28 per m²
• Custom A2 Fire-Rated Versions: Tailored pricing for large-scale projects (>3000 m²)

V. Global Compliance: The Woqin Assurance

Exporting to over 30 countries has taught me that "quality" must be backed by "legal security." To support our European and international partners, we operate under a comprehensive framework:

• EC REP: Full representation through TOCYA TRADING (Paris), ensuring compliance with the EU Product Safety Act (ProdSG).
• Traceability: Every batch of HDPU comes with a full test report and certificate of conformity, ensuring you pass every site inspection with ease.

VI. Pro Installation Tips from the Field

In my 15+ years in the "trenches" of construction material supply, I’ve seen that installation is just as important as the material itself:

1. Thermal Washers: Always use them on mechanical fixings to prevent "point thermal bridges."
2. Structural Adhesives: Apply compatible adhesive on both sides for maximum load transfer.
3. Dimensional Integrity: Our blocks are precision-cut (±0.5 mm). Do not attempt to "compress" them like flexible foam—they are rigid structural elements.

VII. Want to Test Them on Your Next Project?

I believe in the "touch and feel" of material science. I ship free 300×300 mm sample blocks worldwide every week.

The Deal: You only cover the DHL/FedEx freight (typically ranging from USD 80 to 150, depending on your location).

Each sample kit includes the full third-party test report, load-bearing calculation examples, and my direct contact for a technical consultation. We’ve already solved the hard engineering problems—now it’s your turn to benefit from the results.

Contact me today. Let’s eliminate your project's thermal bridges together.
