The Complete Engineering Guide to HD-PUR Structural Solutions for Global LNG Full-Value Chain Infrastructure

From Pipe Shoes to Mega-Tank Foundations, Marine Transport to Modular Construction

Eliminate Cryogenic Risks & Cut Lifecycle Costs Across Your Entire LNG Value Chain

For global EPCs, LNG terminal operators, and shipyards, legacy insulation materials have long been the hidden source of catastrophic risks: freeze-thaw shattering at -196°C, $20M+ annual BOG losses, foundation frost heave, sloshing-induced containment failure, and 12x on-site rework costs for modular projects.

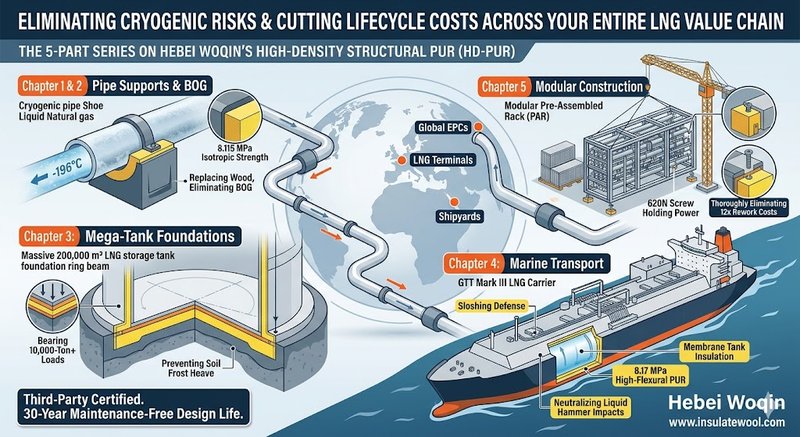

This five-part engineering series maps a complete, end-to-end solution for the entire LNG infrastructure spectrum. We trace the full technology chain: from the most fundamental cryogenic pipe shoe, to the ring beams of 200,000 m³ mega-tanks; from sloshing defense for deep-sea LNG carriers, to the industrial-grade fastening demands of EPC modular PAR construction. Every chapter builds on the last, unified by a single, proven material solution: Hebei Woqin’s 8.115 MPa High-Density Structural PUR (HD-PUR).

Backed by third-party certified test data, our HD-PUR delivers unrivaled isotropic strength, stable 0.080 W/(m·K) thermal integrity, and a 30-year maintenance-free design life — eliminating the core failures of traditional hardwood, low-density foam, and cellular glass across every LNG application.

Chapter 1: The “Material Revolution” in Pipe Supports

Cryogenic Pipe Shoes in LNG Terminals: Replacing Wood with 8 MPa High-Density PUR

(Anchor Point: Starting from the most fundamental support point, using data to demonstrate why traditional hardwood is a “time bomb” at -196°C, and establishing the core performance benchmark of 8.115 MPa isotropic PUR.)

Chapter 2: From “Passive Leakage” to “Active Interception”—The End of BOG

Stopping Boil-Off Gas (BOG): The Role of Structural Thermal Breaks in LNG Piping

(Deepening: Extending the pipe shoe issue from Chapter 1 to plant-wide thermodynamics, quantifying the “Ice Bridge Effect” and the thermal collapse of wet wood that causes tens of millions of dollars in annual boil-off gas losses, and defining the true value of structural thermal breaks.)

Chapter 3: The “Thermal Foundation” for Mega-Tonnage Storage Tanks

The Foundation of Mega-LNG Tanks: Bearing 10,000-Ton+ Loads at -196°C with 8 MPa Structural HD-PUR

(Scaling Up: Elevating from pipe supports to the core plant structure—the ring beam of a 200,000 m³ storage tank. Resolving the “zero datum” settlement crisis, bearing 10,000+ ton static loads with 8.115 MPa while simultaneously cutting off the path of soil frost heave.)

Chapter 4: The “Sloshing Defense” for Deep-Sea Voyages

Securing GTT Mark III LNG Carrier Tanks: 8.17 MPa High-Flexural PUR for Extreme Sloshing Loads

(Crossing Boundaries: Extending static load scenarios to floating assets, introducing the mechanical concept of 8.17 MPa flexural strength and a 1:1 stiffness-to-toughness ratio, and explaining how the isotropic matrix neutralizes liquid hammer impacts, hull torsion, and salt-spray ice wedging in GTT membrane tanks.)

Chapter 5: The “Full-Chain Fastener” for Modular Construction

Modular Pre-Assembled Racks (PARs): 620N Screw Holding Power HD-PUR

(Integrated Closure: Converging on the modular pre-assembled racks that global EPCs care about most. Anchored by 620N screw holding power, connecting the full chain of prefabrication yard, ocean transit, and on-site plug-and-play, thoroughly eliminating the 12x rework costs and schedule delays caused by support loosening, and delivering the 30-year maintenance-free promise.)

Explore the Full Series & Partner With Our LNG Cryogenic Engineering Team

Every article in this 5-part series includes full third-party certified test reports (aligned with ASTM/ISO/ASME standards), detailed engineering calculations, and real-world LNG project case studies — to de-risk your design, strengthen your project bids, and optimize your infrastructure’s lifecycle performance.

Contact Hebei Woqin’s dedicated cryogenic engineering team today to:

 Request the complete technical dossier for our full HD-PUR LNG solution suite

Get a customized, project-specific thermodynamic ROI simulation and load-bearing calculation

Order free physical sample blocks for in-house material performance verification

Email our Technical Desk: an@cn-aerogel.com

Official Website: www.insulatewool.com
